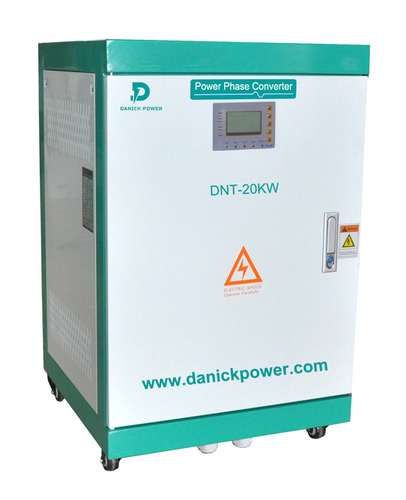

Single phase 120/240Vac to 3 phase 208Vac 60Hz converter

Product Description

Single phase 120/240Vac to 3 phase 208Vac 60Hz converter

Single phase 120/240Vac to 3 phase 208Vac 60Hz converter Advantages:

• The input voltage, output voltage, frequency and phase can be custom made
• Two kinds of start mode: Step Down Voltage Start and Variable Frequency Start. VFD is especially used for taking 3 phase inductive load more easily. This function is very convenient for users and also reduce frequency converter usage, which reduced the cost of equipment investment, easy to connect wires and control
• Output AC Power is suitable for all types of home appliances,electric tools, electric motors etc
• Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency andstable performance. It with powerful protection function for short circuit, over load, over temperature. Service life can reach 15-20 years
• Pure sine wave output. with good transient response, little harmonic distortion, higher conversion efficiency and stable output voltage features
• Adopted low frequency isolated transformer, safe and reliable, single phase input power is completely isolated from three phase output power, high conversion efficiency, high instantaneous power, stable performance and low load loss
• Adopts new magnetism material, largely reduce machine consumption, making efficiency maximum up to 98%
• Adopts America DSP chip, safe and reliable
• Adopts black pure aluminum radiator, which confirms the best radiating performance
• Converter has the function of filtering the grid disturbance and interference at the same time, which is a good performance of stabilized voltage and frequency power, to provide a more stable and pure power supply environment for the back end devices
• Intelligent fan speed control system, low no-load loss
• LCD display, high efficiency, easy installation
• The output frequency 50Hz or 60Hz can be set

Single phase 120/240Vac to 3 phase 208Vac 60Hz converter Specifications:

AC Input

• AC input voltage - Single Phase 120/240Vac(L1,L2-N 120V. L1-L2 240V)

  AC Output

  • AC output power - 3kw-500kw avaliable
  • Pure sine wave
  • 208VAC
  • Three phase L1 + L2 + L3 + N + Earth
  • Frequency 50/60 hz
  • Power Factor: >0.95
  • Inverter efficiency: >94%
  • LCD Display
  • Voltage accuracy - Load balancing<1%, Unbalance <5%
  • THD: linear load, 2%, nonlinear load >3%
  • No load amps: 2% of inverter size depending on DC voltage (1000 watts / DC input voltage = amps)

  Protections

  • Overload 150% for 5 seconds, 120% for 35 seconds
  • Input reverse polarity
  • Under voltage
  • Over voltage
  • Output over current
  • Short circuit
  • Over temperature
  • Fan cooled - Always on
  • Short circuit: no automatic recovery. Restart required
  • <50dB
  • Operating temperature: -25 to 55 Celsius
  • Humidity: 90% non-condensing
